Foot Switches
GENERAL INFORMATION
Spot welders use one of two standard foot switches: two-stage or three-stage.
- Two-stage – for welders without the retract function.
- Three-stage – for welders with the retract function.
Don’t know if your welder has retract? Watch our video explanation.
We stock the two Linemaster Hercules switches below. Both are heavy cast-metal switches built for the shop floor.
At a Glance
| 534-SWHOX | 575-DWHOXA | |
| Stages | Two | Three |
| For welders | Without retract | With retract |
| Contact action | Momentary | 1st stage maintained; 2nd & 3rd momentary |
| Circuit | SPDT, Form C | SPDT, Form C |
| Electrical rating | Up to 250 VAC. Works at 24 V. | Up to 250 VAC. Works at 24 V. |
| Shield | Extra-oversize (OX) | Extra-oversize (OX) |
Features (Both Switches)
- Rugged cast-metal enclosure. Its weight keeps the switch from sliding during use.
- Neoprene cover gasket, O-rings on the actuating shaft, and a separate ground screw.
- Extra-oversize (OX) shield fits oversized safety shoes and metatarsal guards. It has 3/4 in (19.1 mm) more opening height than the standard oversize (O) shield.
- Maintained-contact stages release with a light forward press of the toe on the latch. The latch sits under the full shield, so falling objects cannot easily release it.
- Rated up to 250 VAC. Works on low-voltage control circuits, such as 24 V.
- Driptight, dusttight, watertight and oiltight.
- Painted alert orange.
- One 3/4″-14 NPT threaded conduit entry.
- Three holes for rigid mounting to the floor or equipment.

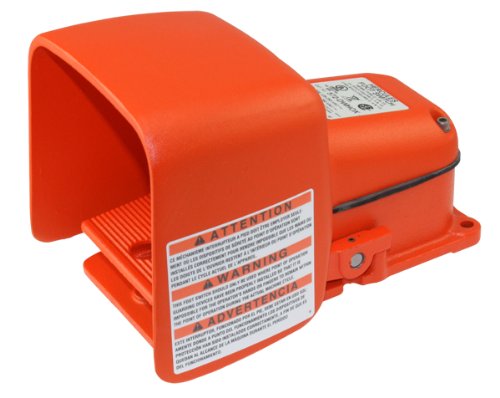

Linemaster 534-SWHOX – Two-Stage
For spot welders without retract. Press to start. Release to stop.
| Stages | Two |
| Use | Welders without retract |
| Contact action | Momentary – press to start, release to stop |
| Circuit | SPDT, Form C |
| Electrical rating | Up to 250 VAC (20 A, 1 HP max.) Heavy pilot duty, 250 VAC max. Works on low-voltage control circuits, such as 24 V |
| Construction / standards | NEMA Type 2, 4 & 13 UL Enclosure 2, 4 & 13 CSA Enclosure 2, 4 & 13 IP56 (EN 60529) |
| Size | 9 x 5-3/4 x 4-3/4 in |
| Weight | Approx. 8 lb |
Linemaster 575-DWHOXA – Three-Stage
For spot welders with retract. The first stage latches. The second and third stages are momentary.
| Stages | Three |
| Use | Welders with retract |
| Contact action | 1st stage maintained – release the latch to stop 2nd & 3rd stage momentary |
| Circuit | SPDT, Form C |
| Electrical rating | Up to 250 VAC (20 A, 1 HP max.) Heavy pilot duty, 250 VAC max. Works on low-voltage control circuits, such as 24 V |
| Construction / standards | NEMA Type 2, 4 & 13 UL Enclosure 2, 4 & 13 CSA Enclosure 2, 4 & 13 IP56 (EN 60529) |
| Size | 9 x 5-3/4 x 4-3/4 in |
| Weight | Approx. 8 lb |
Model code key: S = momentary contact (press to start, release to stop). D = maintained contact (press to start, release latch to stop). OX = extra-oversize shield.
